# Poisson regression
```{r setup, echo=FALSE}
knitr::opts_chunk$set(fig.path="Ch13-figures/")
```
This goal of this chapter is to create an interactive data
visualization that explains
[Poisson regression](https://en.wikipedia.org/wiki/Poisson_regression),
a machine learning model for predicting an integer-valued output from
inputs that are real-valued vectors. This is a "linear regression"
model since it learns a linear function from the inputs to the
output. Like least squares regression, Poisson regression can be
formulated as a maximum likelihood problem. However, it differs from
least squares linear regression since it uses a Poisson distribution
to model the output labels, instead of a Gaussian distribution. This
modeling choice is appropriate when output labels are non-negative
integers.
Chapter outline:
* We begin by creating a plot that shows the probability mass function
for a Poisson distribution mean parameter that can be interactively
selected.
* We then add a second panel that shows the cumulative distribution
function.
* We then add a second plot which shows the Poisson loss, with a
second selector for label value.
## Plot the probability mass function and select the Poisson mean parameter {#plot-prob-mass}

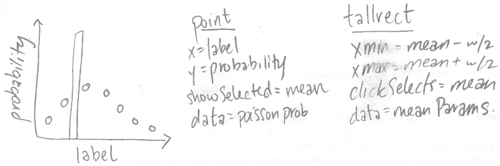

The goal of this section is to create a data visualization that shows
the probability mass function for a selected Poisson mean parameter.
```{r}
library(data.table)
poisson.mean.diff <- 0.25
poisson.mean.vec <- seq(0, 5, by=poisson.mean.diff)
quantile.max <- 0.99
poisson.prob.list <- list()
for(poisson.mean in poisson.mean.vec){
label.max <- qpois(quantile.max, poisson.mean)
label <- 0:label.max
probability <- dpois(label, poisson.mean)
poisson.prob.list[[paste(poisson.mean)]] <- data.table(
poisson.mean,
label,
probability,
cum.prob=cumsum(probability))
}
poisson.prob <- do.call(rbind, poisson.prob.list)
poisson.prob
```

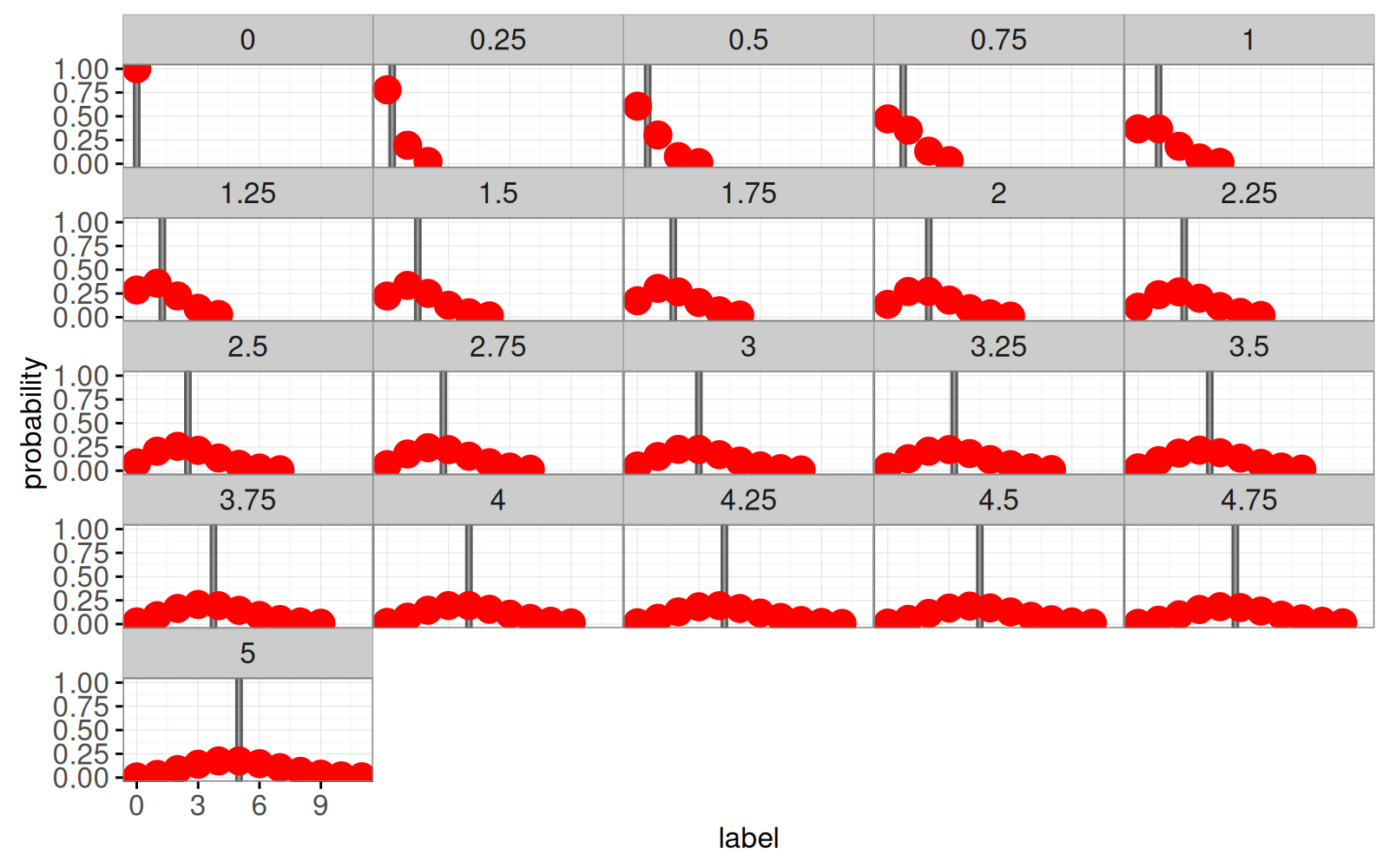

The static data viz below shows one facet for each Poisson
distribution.
```{r}
mean.tallrects <- data.table(
poisson.mean=poisson.mean.vec,
min=poisson.mean.vec - poisson.mean.diff/2,
max=poisson.mean.vec + poisson.mean.diff/2)
library(animint2)
prob.mass <- ggplot()+
theme_bw()+
theme(panel.margin=grid::unit(0, "cm"))+
geom_tallrect(aes(
xmin=min, xmax=max),
clickSelects="poisson.mean",
alpha=0.6,
data=mean.tallrects)+
geom_point(aes(
label, probability,
tooltip=sprintf("prob(label = %d) = %f", label, probability)),
color="red",
showSelected="poisson.mean",
size=5,
data=poisson.prob)
prob.mass+
facet_wrap("poisson.mean")
```
Note that we used `alpha=0.6` with `geom_tallrect`, which means that
the tallrect for the selected mean has 0.6 opacity, and the other
tallrects have 0.1 opacity. Note also that we use `color="red"` and
`size=5` with `geom_point` so that it is easier to see the points on a
grey background, and to hover the cursor over the points to see the
tooltip. We next create an interactive version with animint.
```{r Ch13-viz-prob}
animint(prob.mass)
```
You can click the viz above to change the mean of the Poisson
distribution. You can also hover the cursor over a data point to see
its probability. Note that for integer values of the Poisson mean,
there are two labels that are the most probable (the mode of the
Poisson distribution). For example the Poisson distribution with a
mean of 3 attains its maximum probability of about 0.224 at label
values of 2 and 3.
## Add a panel for the cumulative distribution function {#panel-cdf}

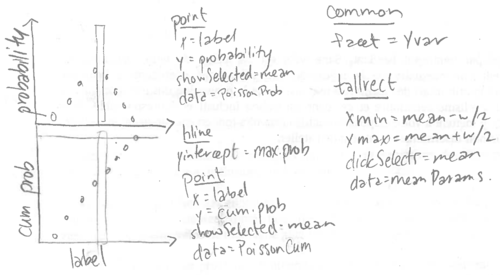

To add a panel for the cumulative distribution function, we will
re-make the ggplot based on the sketch below.
When we specify the data sets, we will use the
[addColumn then facet](../Ch99/Ch99-appendix.html#addColumn-then-facet) idiom
to add a `panel` variable.
```{r Ch13-viz-cum-prob}
addPanel <- function(dt, panel){
data.table(dt, panel=factor(panel, c("probability", "cum prob")))
}
quantile.max.dt <- data.table(quantile.max)
animint(
prob=ggplot()+
theme_bw()+
theme(panel.margin=grid::unit(0, "cm"))+
facet_grid(panel ~ ., scales="free")+
geom_hline(aes(
yintercept=quantile.max),
color="grey",
data=addPanel(quantile.max.dt, "cum prob"))+
geom_tallrect(aes(
xmin=min, xmax=max),
clickSelects="poisson.mean",
alpha=0.6,
data=mean.tallrects)+
geom_point(aes(
label, probability,
tooltip=sprintf(
"prob(label = %d) = %f", label, probability)),
showSelected="poisson.mean",
color="red",
size=5,
data=addPanel(poisson.prob, "probability"))+
geom_point(aes(
label, cum.prob,
tooltip=sprintf(
"prob(label <= %d) = %f", label, cum.prob)),
showSelected="poisson.mean",
color="red",
size=5,
data=addPanel(poisson.prob, "cum prob")))
```
Note how we used `addPanel` to add a `panel` variable to all the data
sets for each geom except `geom_tallrect`. Using `panel` as a facet
variable has the effect of drawing each geom in only one panel, except
the `geom_tallrect` which is drawn in each panel.
Note that we also used a `geom_hline` to show 0.99, the cumulative
distribution function threshold that was used to determine the set of
points to plot for each Poisson distribution. This is an example of
"show your arbitrary choices," one of the general principles of
designing good interactive data visualizations.
## Add a plot of the Poisson loss and a selector for label value {#plot-loss}
Next we will compute the Poisson loss for several values of the output
label.
```{r}
PoissonLoss <- function(label, seg.mean){
stopifnot(is.numeric(label))
stopifnot(is.numeric(seg.mean))
if(any(seg.mean < 0)){
stop("PoissonLoss undefined for negative segment mean")
}
if(length(seg.mean)==1)seg.mean <- rep(seg.mean, length(label))
if(length(label)==1)label <- rep(label, length(seg.mean))
stopifnot(length(seg.mean) == length(label))
not.integer <- round(label) != label
is.negative <- label < 0
loss <- ifelse(
not.integer | is.negative, Inf,
ifelse(seg.mean == 0, ifelse(label == 0, 0, Inf),
seg.mean - label * log(seg.mean)
## This term makes all the minima zero.
-ifelse(label == 0, 0, label - label*log(label))))
loss
}
```
Below we compute the loss for several label values, using the
[list of data tables idiom](../Ch99/Ch99-appendix.html#list-of-data-tables).
```{r}
label.vec <- unique(poisson.prob$label)
label.range <- range(label.vec)
mean.vec <- seq(label.range[1], label.range[2], l=100)
loss.min.list <- list()
loss.fun.list <- list()
for(label in label.vec){
loss <- PoissonLoss(label, mean.vec)
loss.fun.list[[paste(label)]] <- data.table(
label, poisson.mean=mean.vec, loss)
loss.min.list[[paste(label)]] <- data.table(
label, loss=0)
}
loss.fun <- do.call(rbind, loss.fun.list)
loss.min <- do.call(rbind, loss.min.list)
```
We also make a data table to display text labels for the selected mean
and label values.
```{r}
mean.text <- data.table(
label=max(poisson.prob$label)/2,
probability=0.95,
poisson.mean=poisson.mean.vec)
loss.max <- 10
label.text <- data.table(
poisson.mean=max(mean.tallrects$max),
loss=loss.max*0.95,
label=label.vec)
```
Next we make a data viz with an additional panel.
```{r Ch13-viz-loss}
(viz.loss <- animint(
prob=ggplot()+
theme_bw()+
theme(panel.margin=grid::unit(0, "cm"))+
facet_grid(panel ~ ., scales="free")+
geom_text(aes(
label, probability, label=sprintf(
"Poisson mean = %.2f", poisson.mean)),
color="red",
showSelected="poisson.mean",
data=addPanel(mean.text, "probability"))+
geom_hline(aes(
yintercept=quantile.max),
color="grey",
data=addPanel(quantile.max.dt, "cum prob"))+
geom_point(aes(
label, probability,
tooltip=sprintf(
"prob(label = %d) = %f", label, probability)),
showSelected="poisson.mean",
clickSelects="label",
color="red",
size=5,
alpha=0.7,
data=addPanel(poisson.prob, "probability"))+
geom_point(aes(
label, cum.prob,
tooltip=sprintf(
"prob(label <= %d) = %f", label, cum.prob)),
color="red",
showSelected="poisson.mean",
clickSelects="label",
size=5,
alpha=0.7,
data=addPanel(poisson.prob, "cum prob")),
loss=ggplot()+
theme_bw()+
geom_text(aes(
poisson.mean, loss,
label=sprintf("label = %d", label)),
showSelected="label",
hjust=0,
data=label.text)+
geom_line(aes(
poisson.mean, loss),
showSelected="label",
data=loss.fun)+
geom_point(aes(
label, loss),
showSelected="label",
data=loss.min)+
geom_tallrect(aes(
xmin=min, xmax=max),
clickSelects="poisson.mean",
alpha=0.6,
data=mean.tallrects)))
```
The data viz above shows the probability on the left and the Poisson
loss on the right.
```{r Ch13-viz-log-loss}
viz.log.loss <- viz.loss
addX <- function(dt, x.var)data.table(dt, x.var=factor(
x.var, c("poisson mean", "log(poisson mean)")))
finite.loss <- loss.fun[is.finite(loss)]
finite.loss[, log.poisson.mean := log(poisson.mean)]
finite.log.loss <- finite.loss[is.finite(log.poisson.mean)]
mean.tallrects[, log.min := ifelse(min < 0, -Inf, log(min))]
viz.log.loss$loss <- ggplot()+
theme_bw()+
theme(panel.margin=grid::unit(0, "lines"))+
facet_grid(. ~ x.var, scales="free")+
xlab("")+
coord_cartesian(ylim=c(0, loss.max))+
geom_text(aes(
poisson.mean, loss, label=sprintf(
"label = %d", label)),
showSelected="label",
hjust=0,
data=addX(label.text, "poisson mean"))+
geom_line(aes(
poisson.mean, loss),
showSelected="label",
data=addX(finite.loss, "poisson mean"))+
geom_point(aes(
label, loss),
showSelected="label",
data=addX(loss.min, "poisson mean"))+
geom_tallrect(aes(
xmin=min, xmax=max),
clickSelects="poisson.mean",
alpha=0.6,
data=addX(mean.tallrects, "poisson mean"))+
geom_line(aes(
log.poisson.mean, loss),
showSelected="label",
data=addX(finite.log.loss, "log(poisson mean)"))+
geom_point(aes(
log(label), loss),
showSelected="label",
data=addX(loss.min[0<label,], "log(poisson mean)"))+
geom_tallrect(aes(
xmin=log.min, xmax=log(max)),
clickSelects="poisson.mean",
alpha=0.6,
data=addX(mean.tallrects, "log(poisson mean)"))
viz.log.loss
```
## Chapter summary and exercises {#Ch13-exercises}
We explained how to visualize the Poisson distribution and loss, which
are used for the Poisson regression model.
Exercises:
* The code above used `addPanel` and `addX` helper functions with
several geoms to create multi-panel plots, which results in
repetition. To avoid that repetition, create a new data viz which
uses a single geom with a larger data set. For example, the red
points in the two panels of the first plot could be defined using
one `geom_point` with a larger data set (Hint: use
`data.table::melt` with `measure.vars=c("cum.prob", "probability")`.
* Create a similar sequence of data visualizations for the
[Binomial regression](https://en.wikipedia.org/wiki/Binomial_regression)
model.
Next, [Chapter 14](../Ch14/Ch14-PeakSegJoint.html) explains how to use the
named clickSelects/showSelected to visualize the PeakSegJoint
machine learning model with data-driven selector variables.
